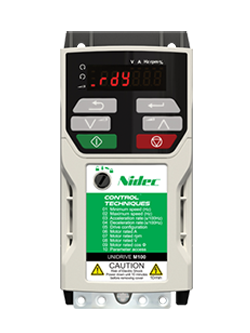

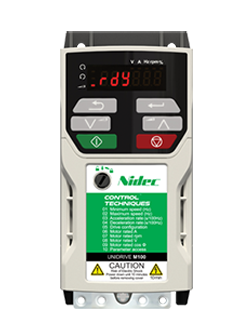

Unidrive M100/101 AC Drive

0.25 kW – 7.5 kW Heavy Duty (0.33 hp - 10 hp)

100 V / 200 V / 400 V

Even though it runs on the same technology as our more complex drives, the Unidrive M101 is ideal for basic motor control. We’ve stripped out all the extra functionality, giving you the foundation of what makes the Unidrive M great.

As with all Unidrive M General Purpose drives, fit for purpose is our key priority. That means they are easy to install and built to last.

  • Features

    Easy to set-up

    • Designed to make set-up as simple as possible.
    • Many applications require changing just a few settings.
    • Adjustments are easy with the keypad and clear step-by-step guide.
    • Useful parameter guide located on the front of the drive.

    Concise parameter set for ease of use

    • For fast, batch production, parameters can be transferred to new drives using standard SD card with AI-Backup module or AI-Smart adaptor.

    Reduced application size and cost

    • Unidrive M drives are amongst the smallest in their class.
    • Drives can be fitted side-by-side to save even more space.
    • Designed for easy assembly in or out of a cabinet.
    • DIN rail mounting supported below 1.5kW.

    Save energy

    • Low power standby mode – drives can sit idle for significant periods.
    • Automatic 3-speed cooling fan – keeps energy usage to a minimum by intelligently responding to load and the environment.
    • Square law V/F mode - optimized for quadratic loads like pumps and fans to reduce motor losses.
    • Dynamic V/F mode - keeps energy usage and motor losses to a minimum in low load conditions.
    • Unidrive M is 98% efficient – only 2% energy is lost in the conversion process across the drive.

    Minimize downtime with robust and reliable drives

    • Conformal coated PCBs – for increased resilience to moisture, dust, chemicals and temperature extremes.
    • Patented air flow system – efficiently cools drives while protecting internal components from degradation.
    • Ingress protection up to IP21 – UL open class (NEMA 1) compliant.
Specifications

Key data
  • Heavy Duty rating: 0.25 – 7.5 kW (0.33 - 10 hp)

  • Supply phases: 110 V drives – 1 phase, 230 and 400 V drives - 1 or 3 phase

Standard features

Parameter cloning via:

  • SD card via AI-Back-up adaptor

Voltage ratings

100 V (100 V - 120 V ± 10%)

200 V (200 V - 240 V ± 10%)

400 V (380 V - 480 V ± 10%)

575 V (500 V - 575 V ± 10%)



690 V (500 V - 690 V ± 10%)





Control mode

Open loop vector or V/Hz induction motor control

Open loop Rotor Flux Control for induction motors (RFC-A)



Open loop permanent magnet motor control (RFC-S)



Closed loop Rotor Flux Control for induction motors (RFC-A)


Closed loop permanent magnet motor control (RFC-S)

Active Front End (AFE) power quality convertor





FRAME SIZE





DIMENSIONS (H X W X D)





WEIGHT











mm





in





kg





lb





1





160 x 75 x 130



DIN rail mounting*



137 x 75 x 130





6.3 x 3.0 x 5.1



DIN rail mounting*



5.4 x 3.0 x 5.1





0.75





1.65





2





205 x 75 x 150



DIN rail mounting*



180 x 75 x 150





8.1 x 3.0 x 5.9



DIN rail mounting*



7.1 x 3.0 x 5.9





1.0





2.2





3





226 x 90 x 160





8.9 x 3.5 x 6.3





1.5





3.3





4





277 x 115 x 175





10.9 x 4.5 x 6.9





3.13





6.9



All dimensions include mounting brackets except for the DIN rail alternative for frames 1 and 2

*Additional fixings required to maximize security

  • Options
    Drive interface units - Back-up



    AI-Back-up Adaptor
    Port adaptor for SD card parameter cloning, and an input for 24 V back-up
      AI-Smart Adaptor
    Has built in memory for parameter cloning, and an input for 24 V back-up
